Pictures of Pieter Mechels, version for 137 MHz

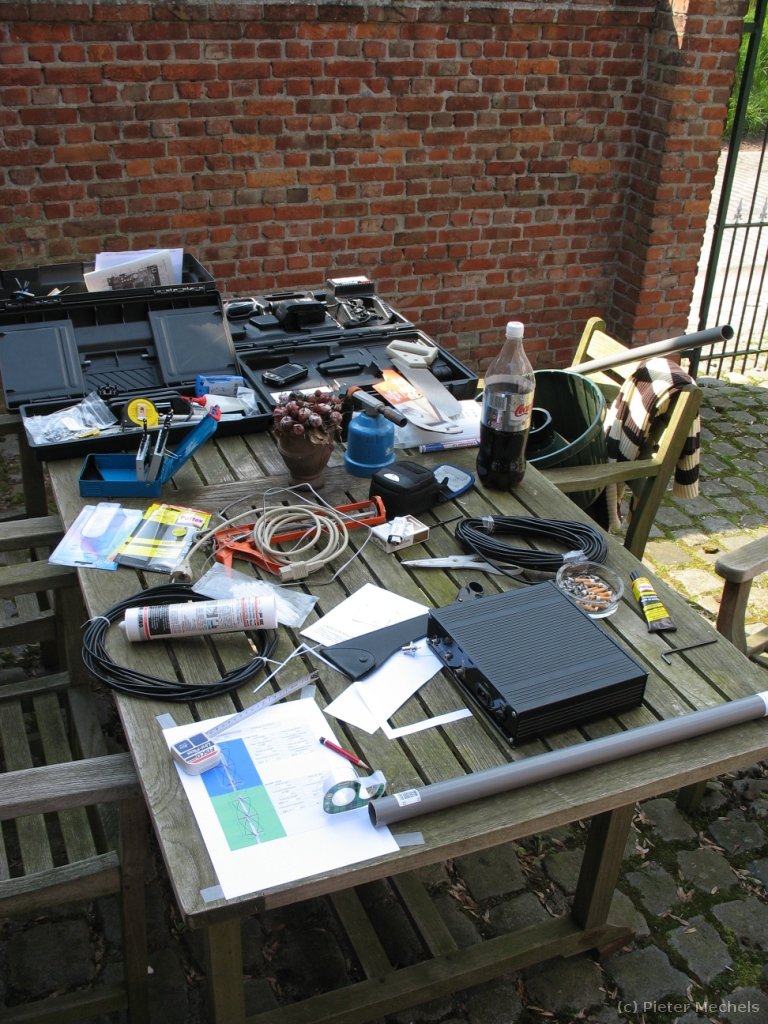

All the ingredients for the QFH antenna... Note the harcopy of my antenna calculator!

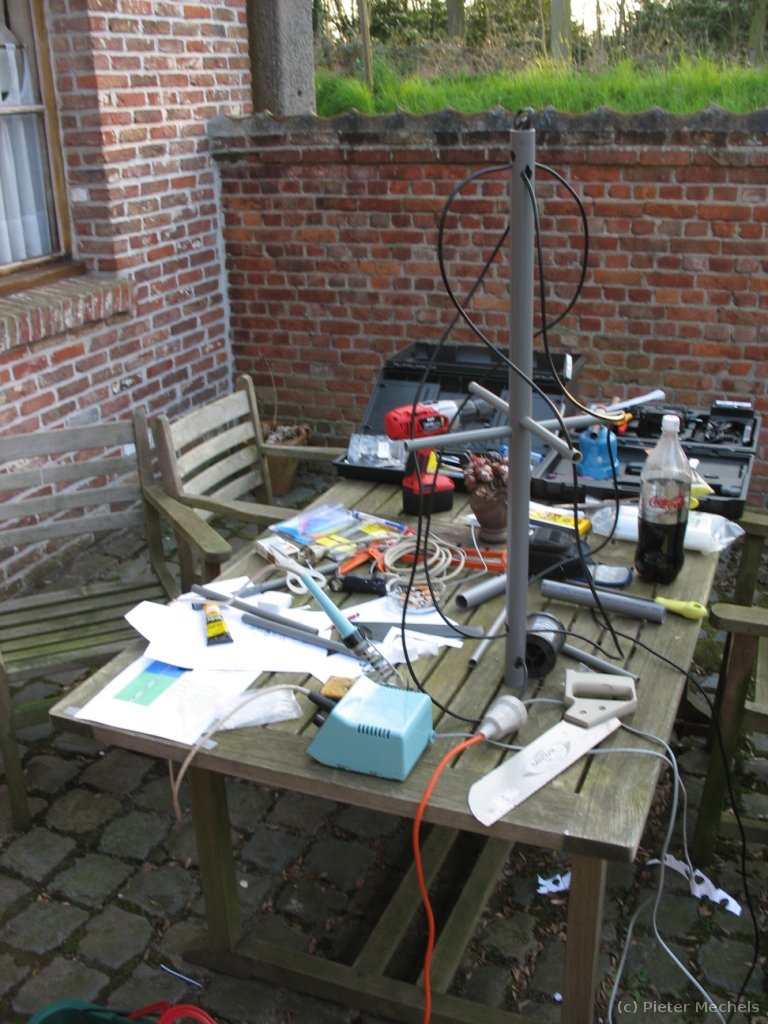

Most of the plastic work is done.

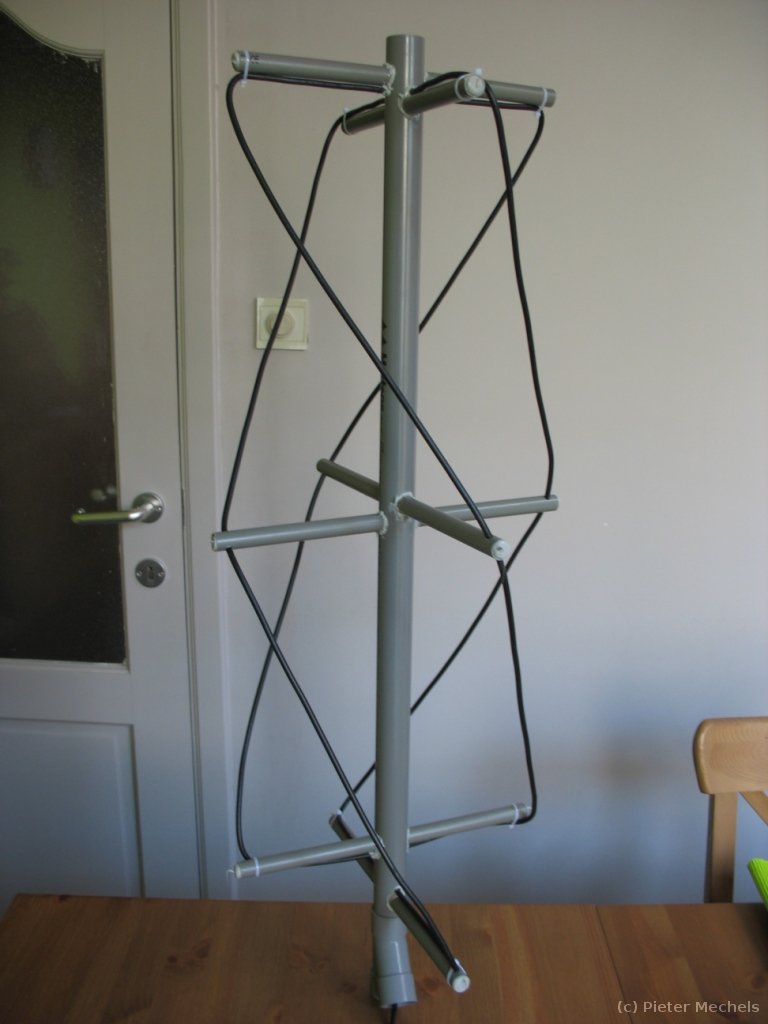

This is a 'floppy' version of the QFH antenna.

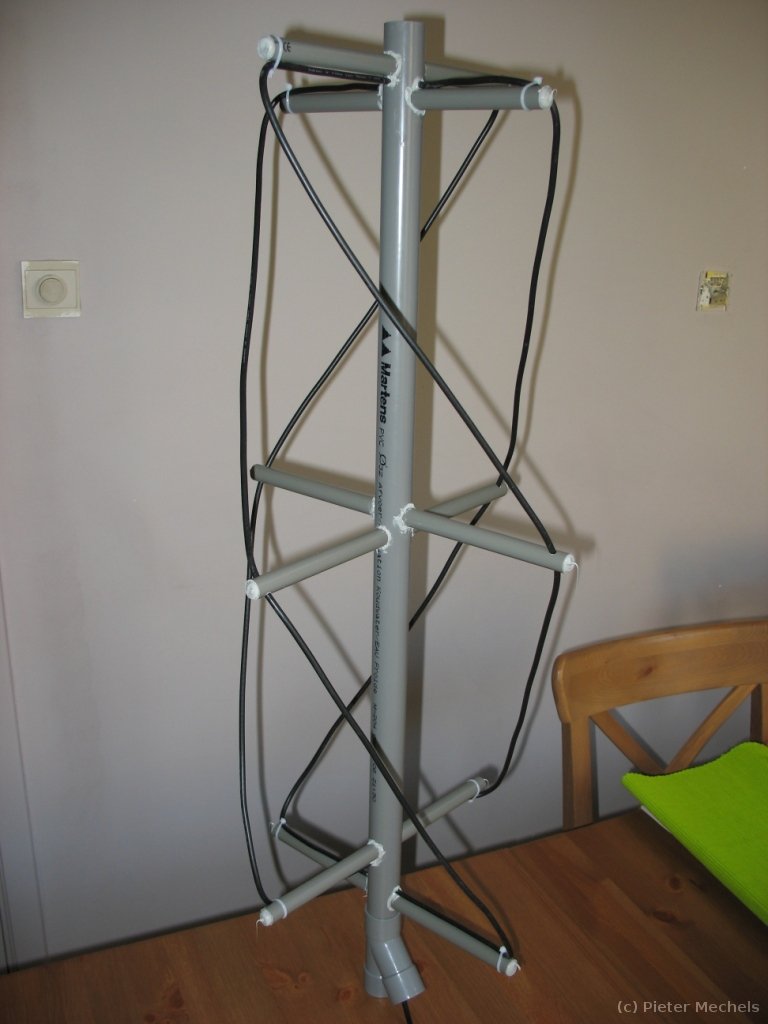

And here are all the supports in place again.
Another view.

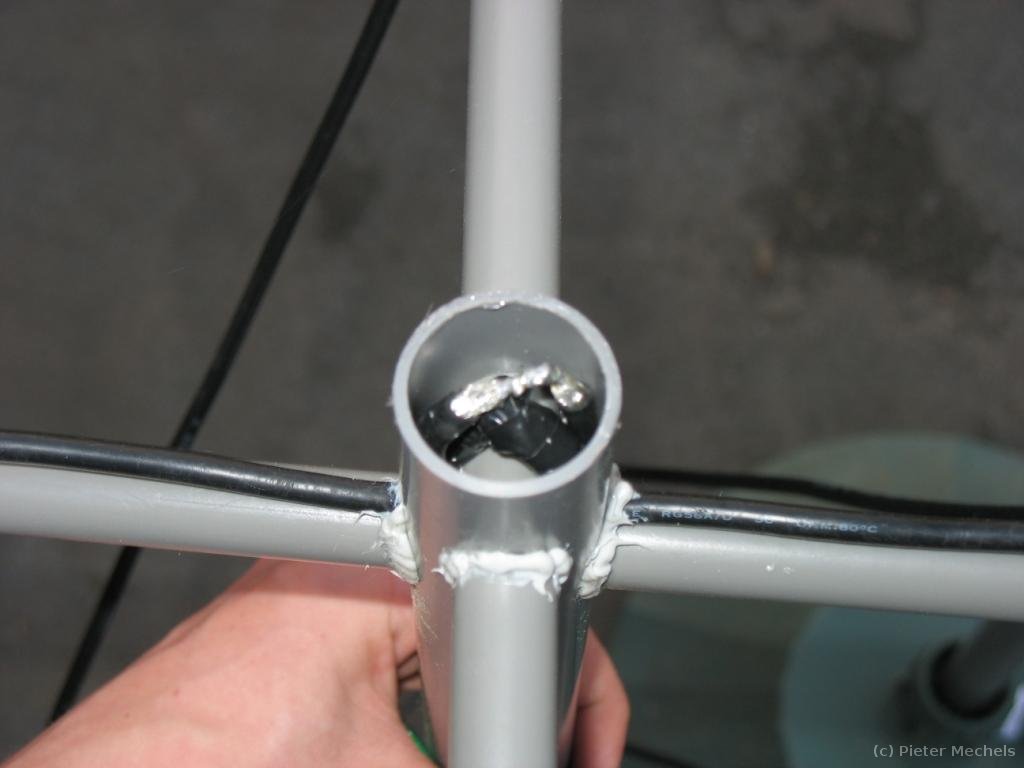

Inside the top,

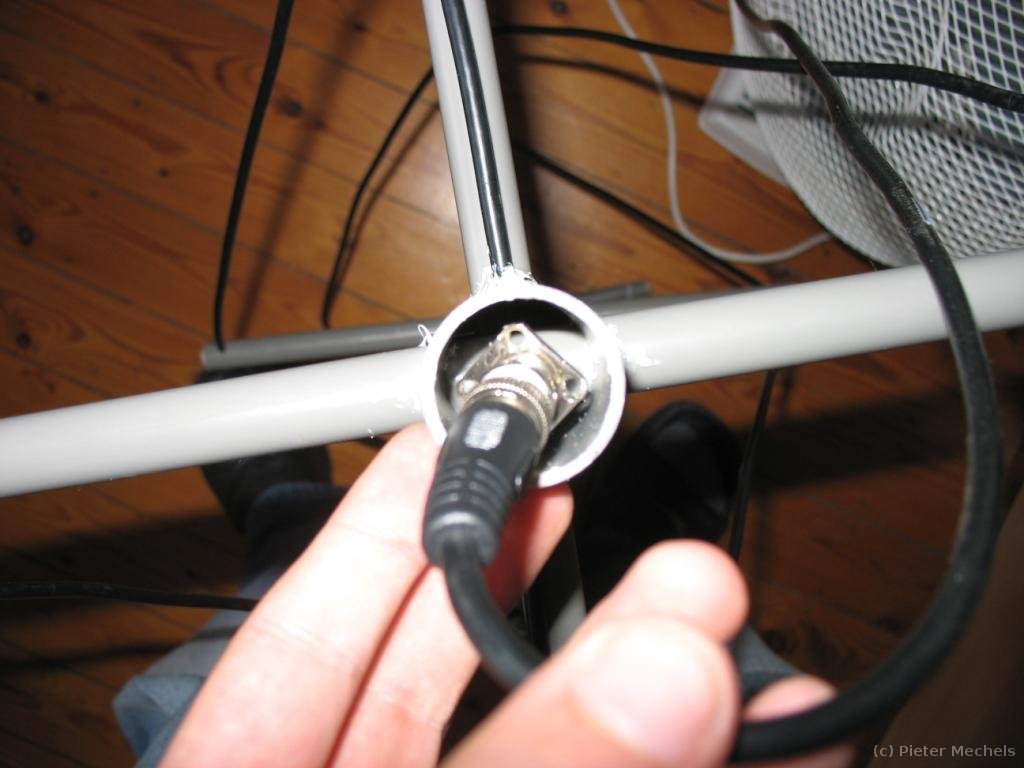

and the bottom connections.

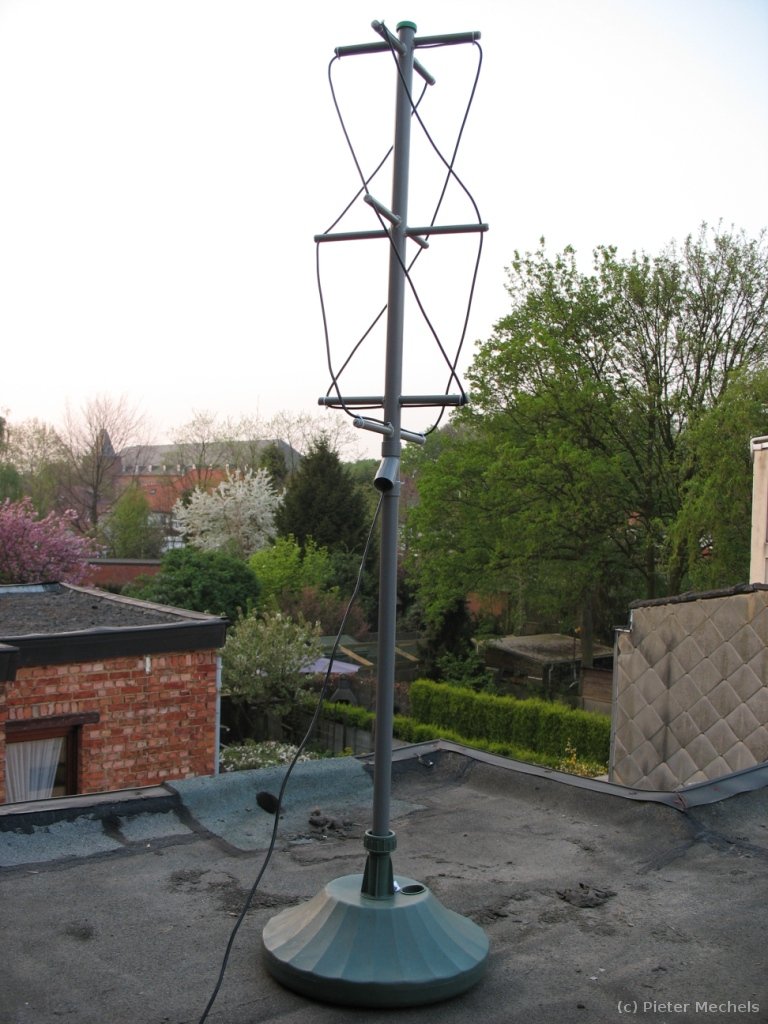

And then outside. The vertical support fits exactly in the umbrella stand (but is too narrow to make easy connections!).

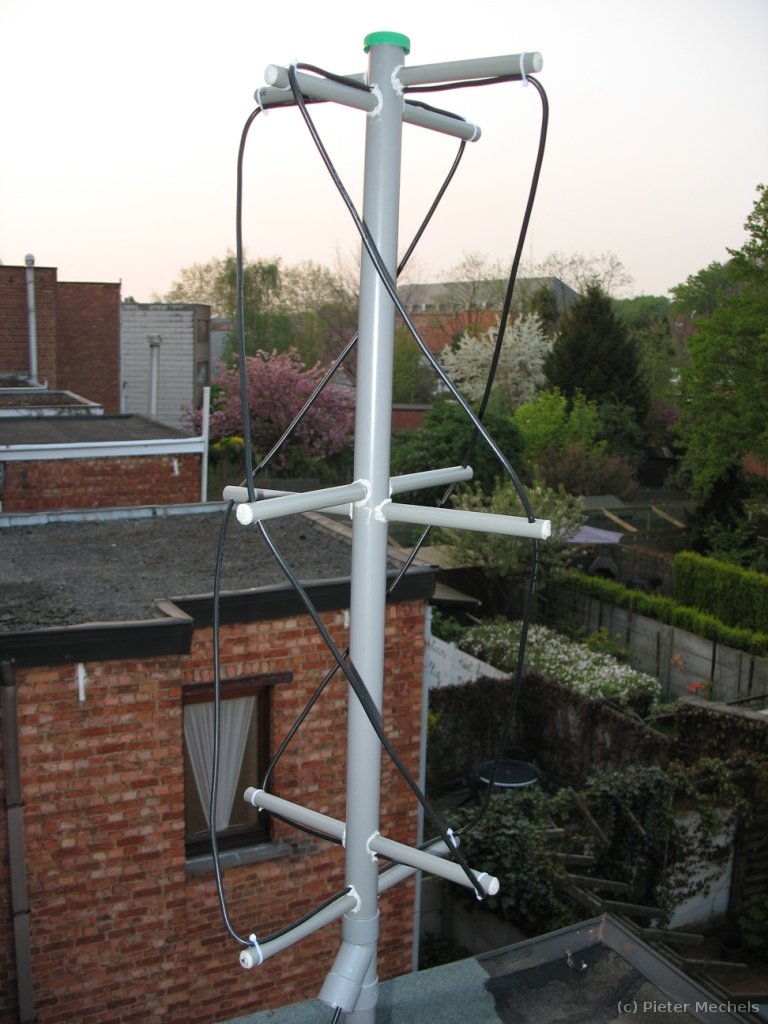

A little closer. All on a typical Belgian cloudy day...
