    Einfache helix

Simulation of several versions

Description W/H=0.32 W/H=0.38 W/H=0.44 W/H=0.50 W/H=0.44inv

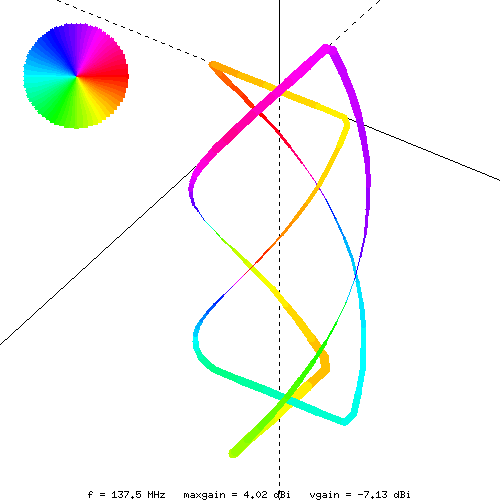

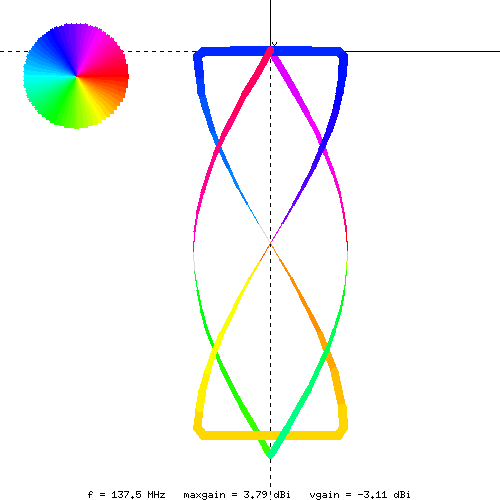

Geometrie (X-Achse)

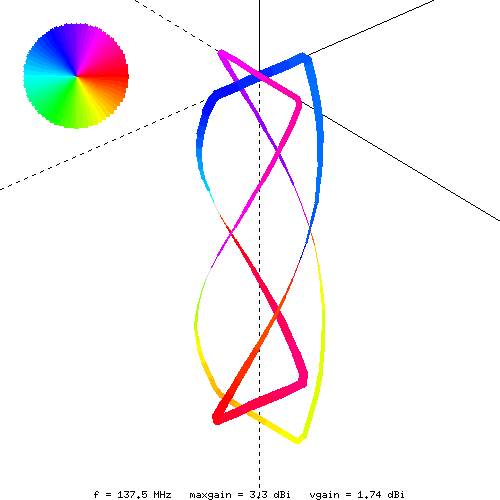

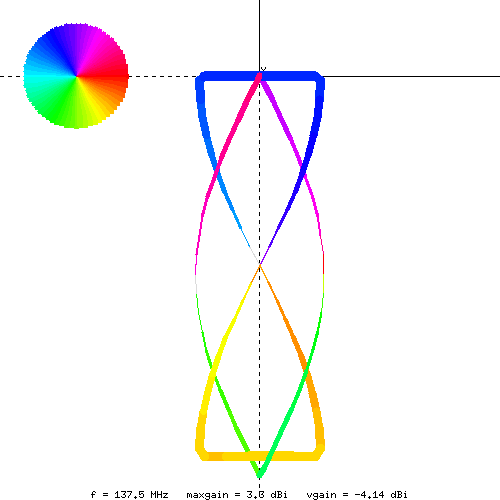

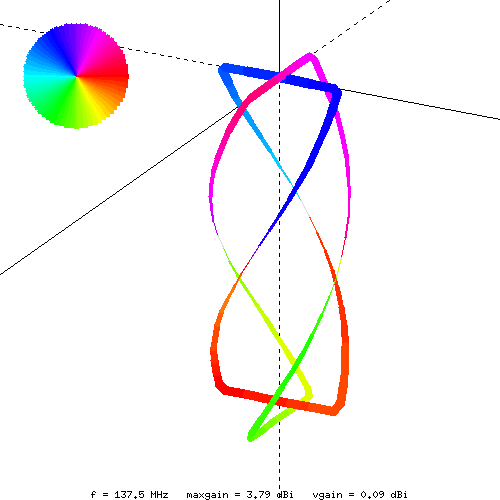

Geometrie (3D)

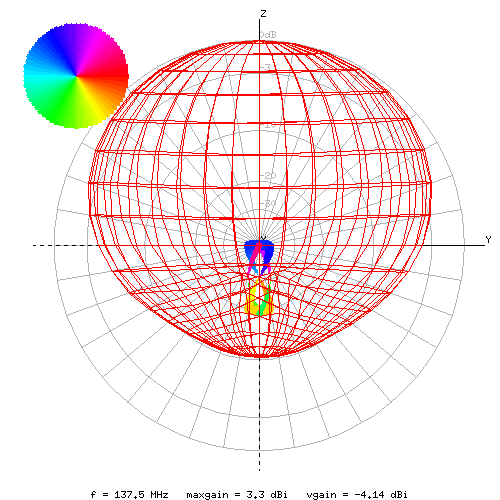

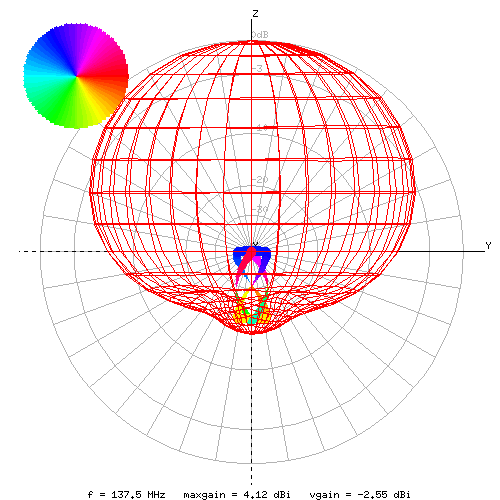

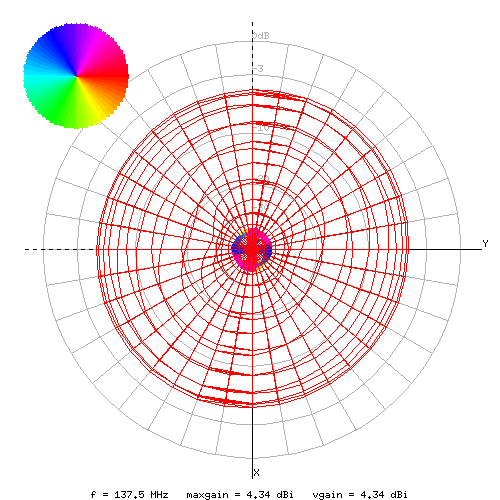

Radiation Diagramm (X-Achse)

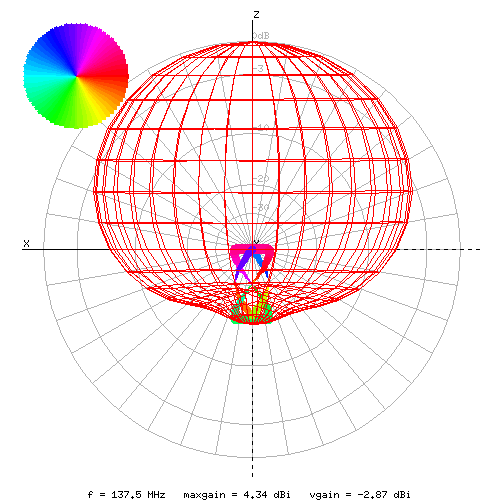

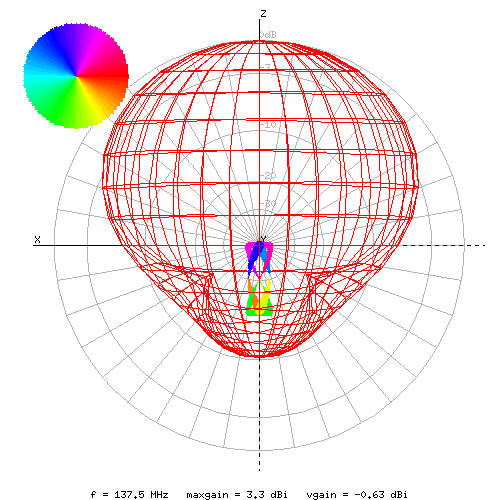

Radiation Diagramm (Y-Achse)

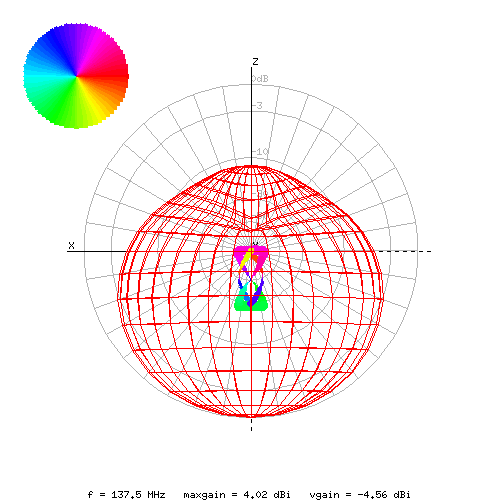

Radiation Diagramm (Z-Achse)

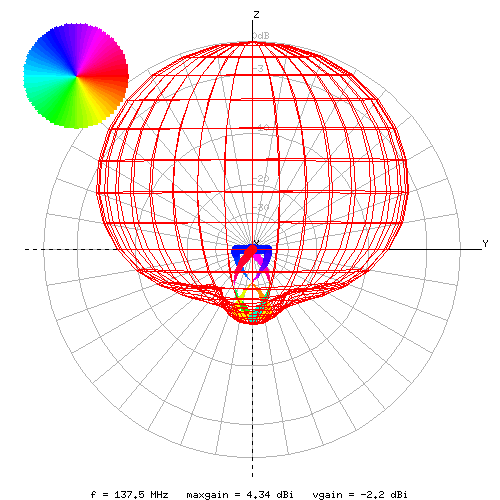

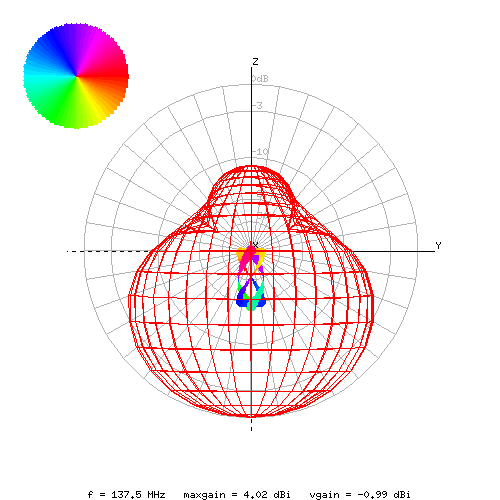

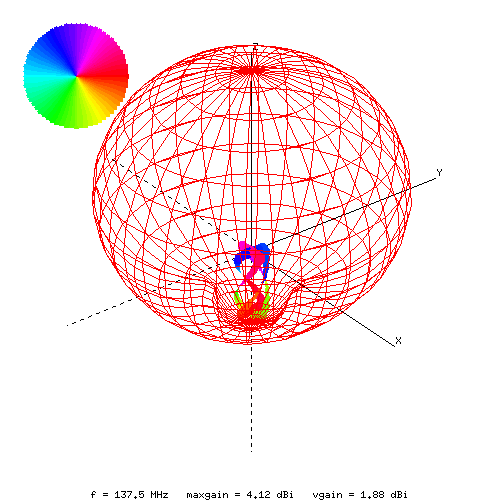

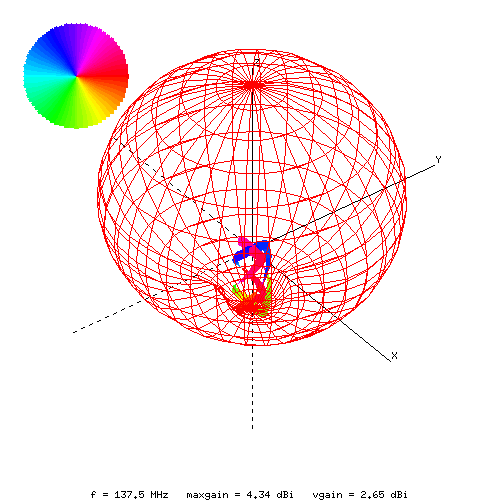

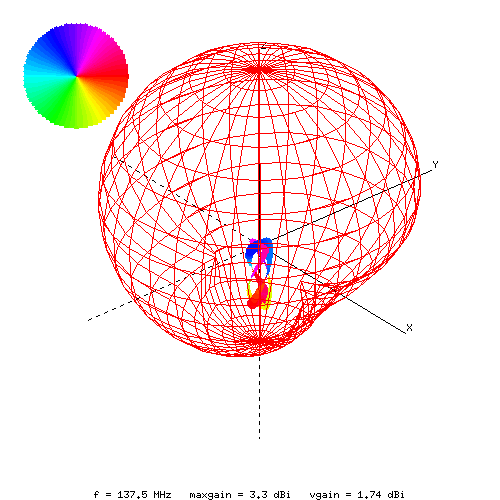

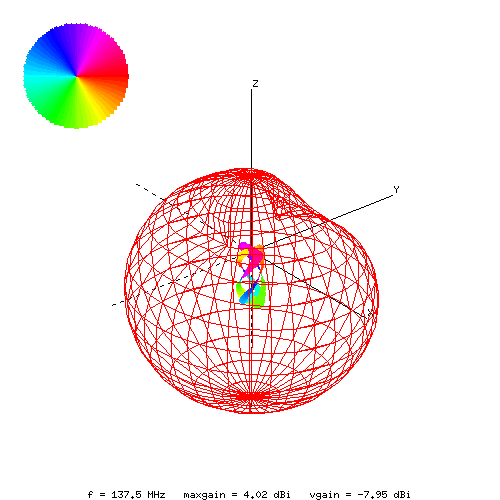

Radiation Diagramm (3D)

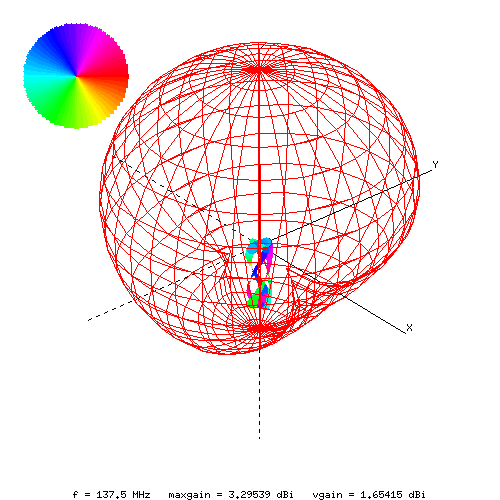

Radiation Diagramm (lhcp)

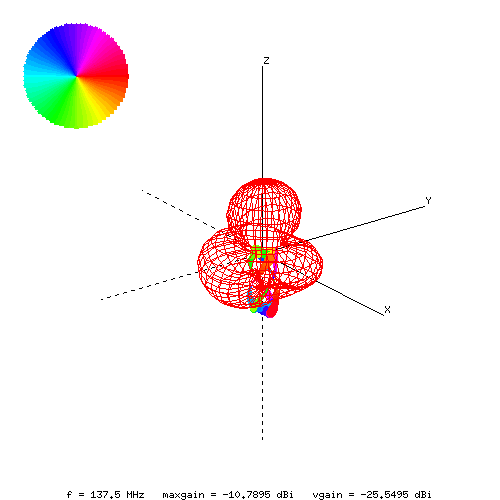

Radiation Diagramm (rhcp)
Datei für NEC2

0.32 Verhaeltnis W/H = 0.32
0.38 Verhaeltnis W/H = 0.38
0.44 Verhaeltnis W/H = 0.44
0.50 Verhaeltnis W/H = 0.50

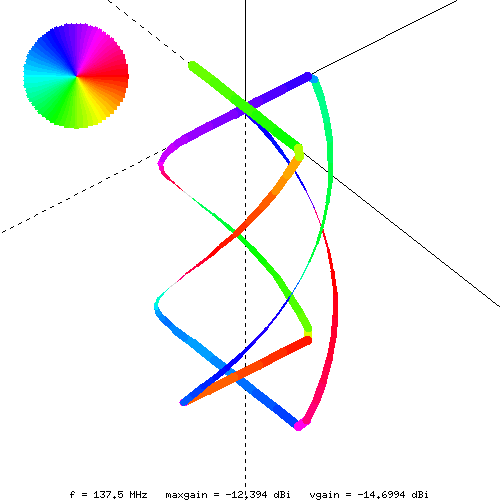

0.44inv Verhaeltnis W/H = 0.44, Anchlüße umgedreht (Fehler!)
