VLF and ELF loop antenna - Cabling the structure

Inserting the wire packets into the plastic structure proved to be a challenge. Not so much the insertion by itself, but the packets resulted slightly short.

Images

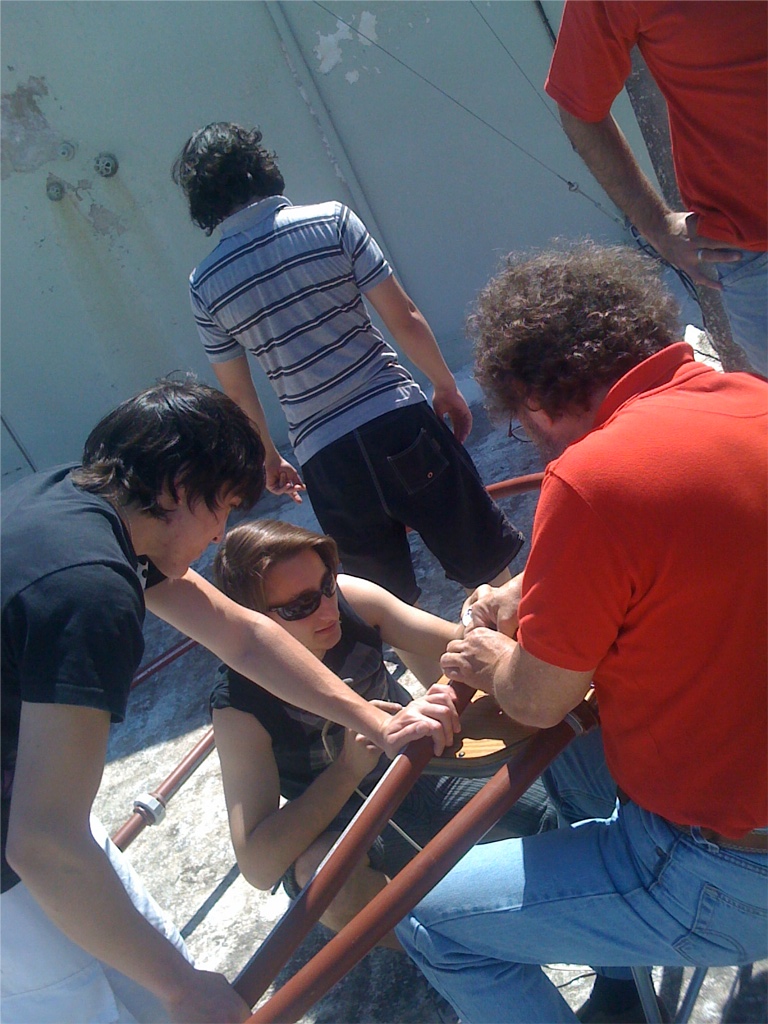

Insertion was easier than planned.

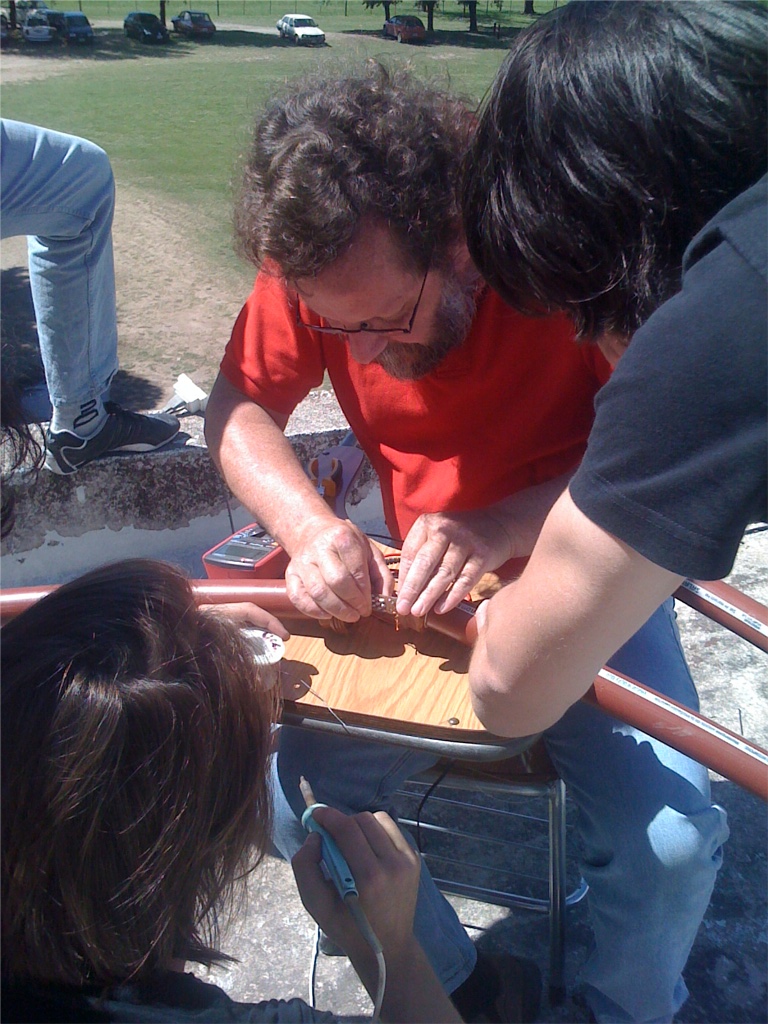

But the wire packets were about 10 cm short, so

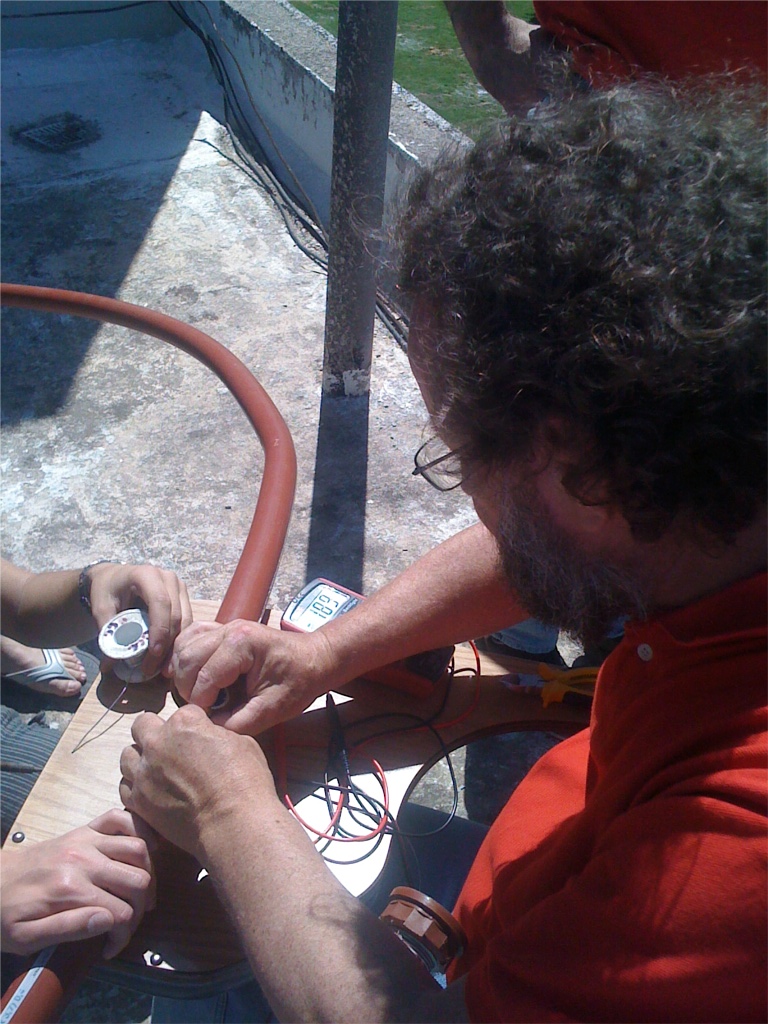

... the interconnection wire had to be redimensioned

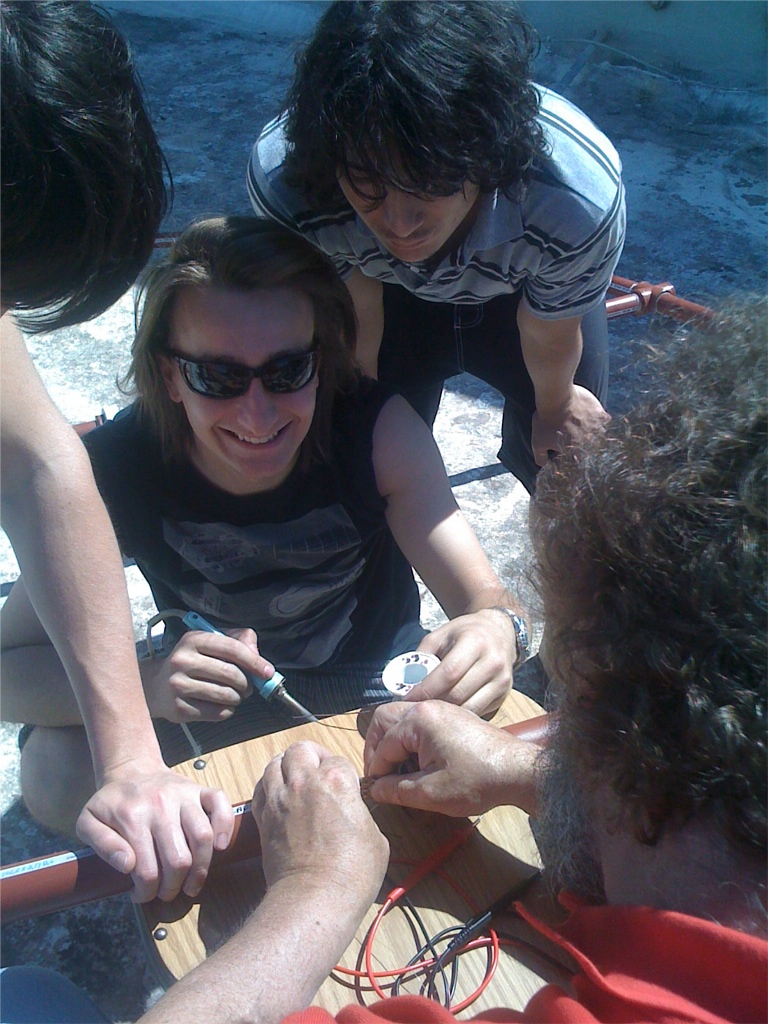

... to account for the shortage.

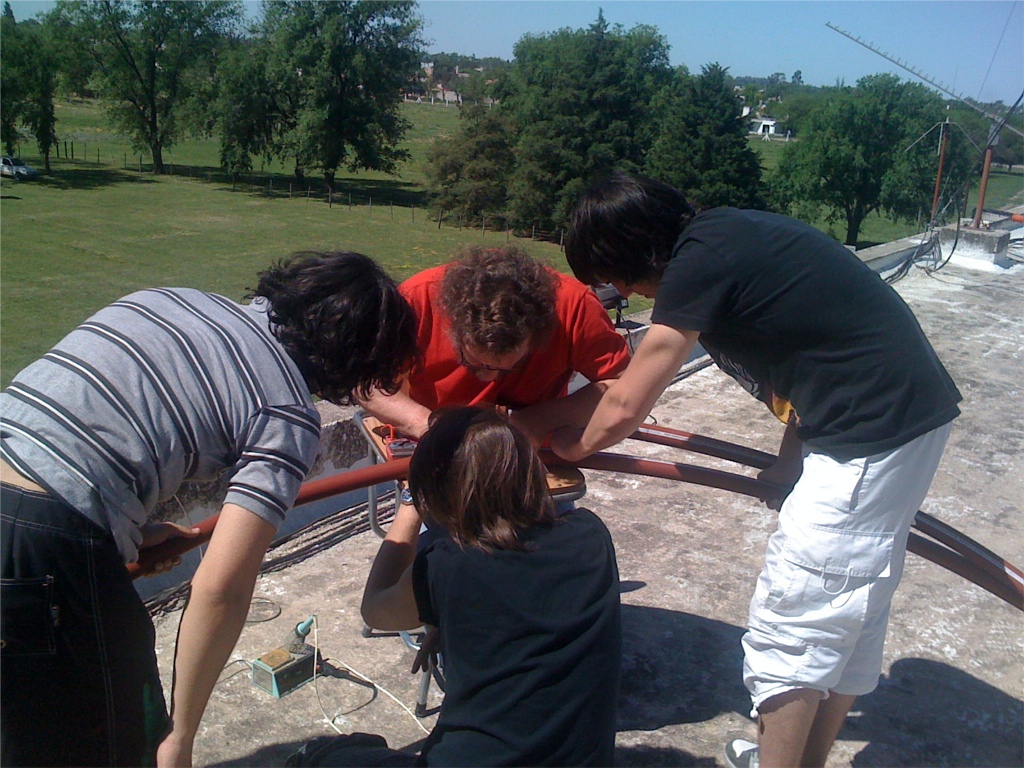

Luckily, many 'hands on deck' to help with the project.

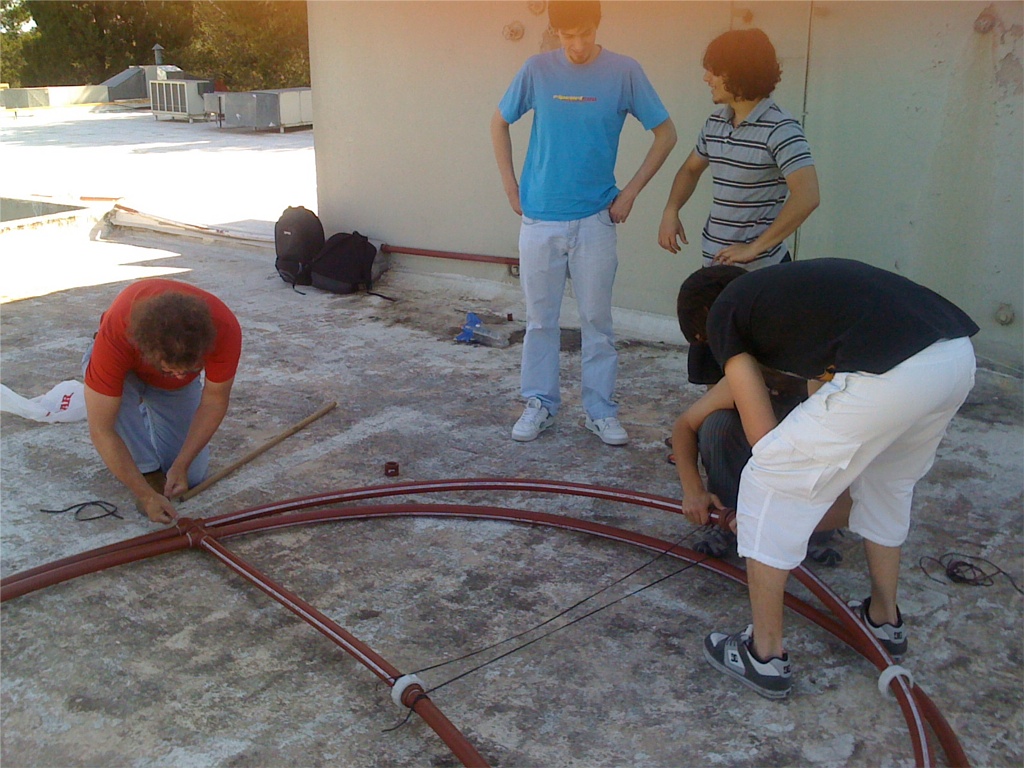

By design, the coils could be rotated to lay the antenna almost completely flat on the roof.

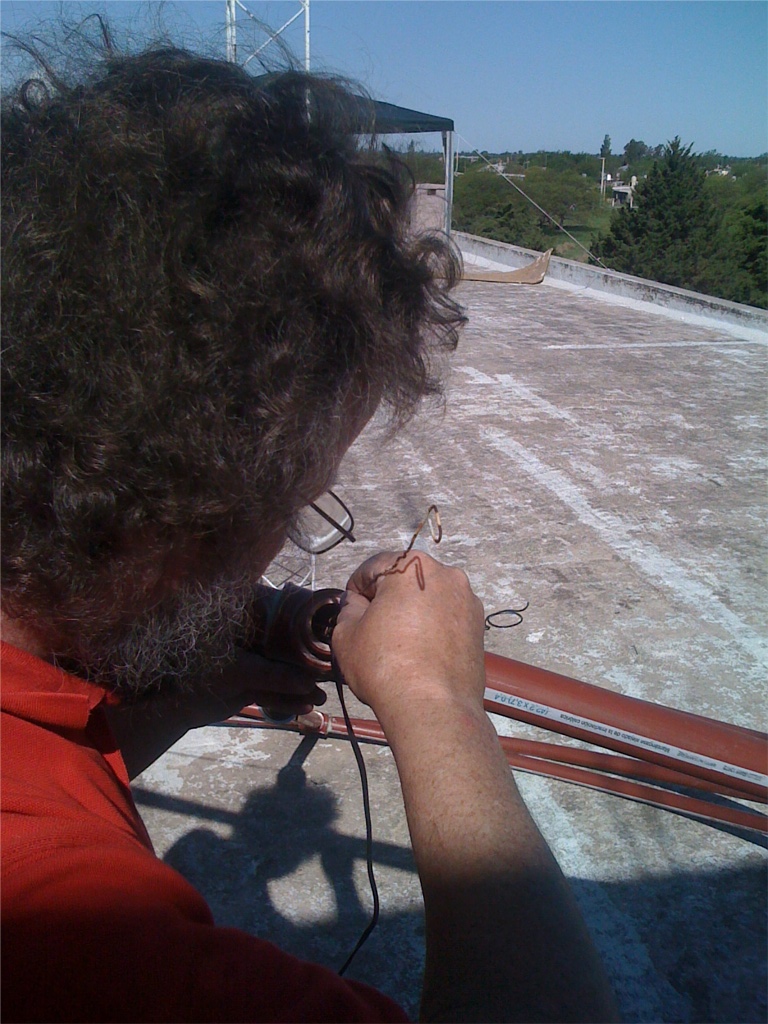

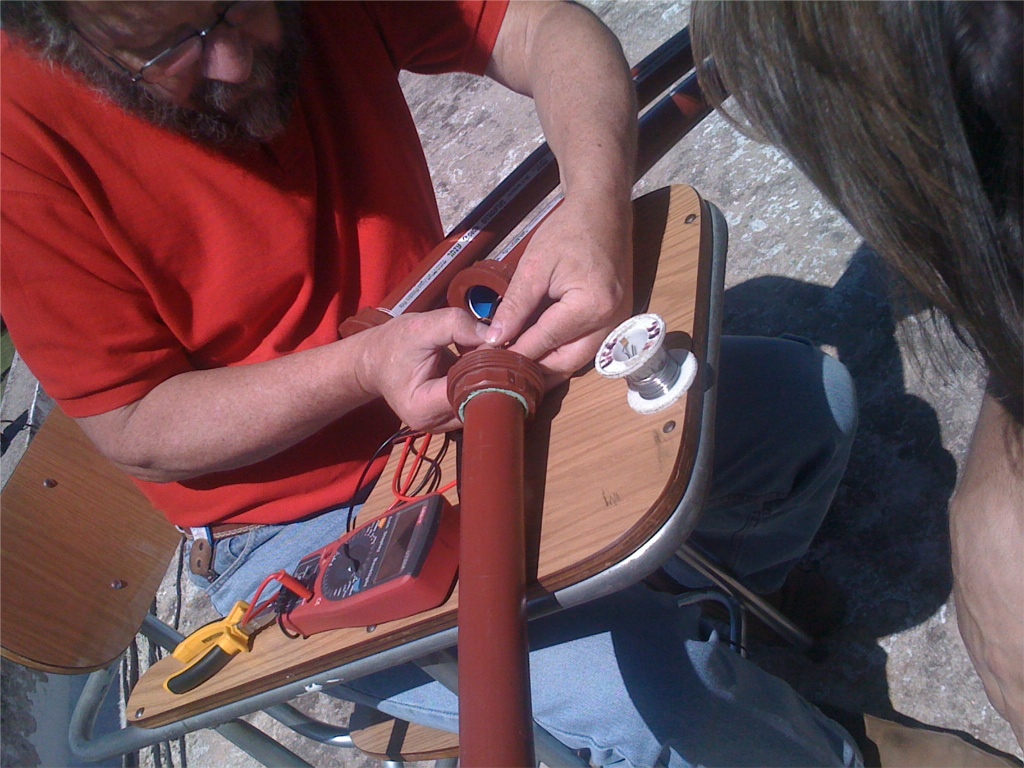

Fishing for the feed wires.

Checking for possible problems at the mounting location.
