2 MHz LC bandpass filter

Certainly the most critical part of the new receiver, was (and is) the bandpass filter. After all, the idea was to reject the interference from the OrbComm satellites. Theoretically, it would be even impossible to do it (one of the operating frequencies is so close to NOAA-12 that they actually overlap.

Anyway, a fairly sharp Tchebyshev filter was designed, simulated and constructed, and, on the way, a lot was learned about LC-filters while building. Schoolbooks is one thing, making it work quite another...

The filter

The new receiver
Click on the image to obtain a larger version. There's also a PDF version of the circuit.
Left is the circuit of the bandpass filter. A few remarks about strange things:
  • The input and output impedance of 1500 Ω was selected to fit the MC3356's impedances.
  • The coupling between both LCs is done with a link of three turns instead of the usual top-coupling, because of the impracticality of the values in that case (very low Cs and very large Ls).
  • The input and output Ls could very well be tuned by compressing the turns instead of using trimmer caps. The inductance can be changed a few % by compression.
  • The coupling LC is also tuned by a trimmer of a few pF (not shown in the circuit).
  • Keep input and output LCs separated - if too close, they will couple directly. Even if they are toroids.
One view of the filter. The blue trimmer C tunes the coupling section. The white thing behind the couple L is foam double-sided adhesive tape, to fix the toroid to the wall. View of the filter
Another view. The black trimmer Cs at each end are the tuning caps. The brown caps are Mica 680 pF capacitors. View of the filter
This version was constructed by Jeff, VE3AK. He commented that the filter could not be measured using a function generator - it was too narrow! He used a potcore for the coupling inductor (center). View of Jeff's filter

Simulation

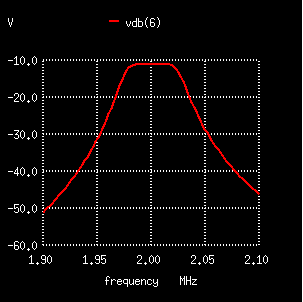

Filter response in dB Filter response (magnitude)
Filter response in dB Filter response (magnitude)

Response of the filter, simulated with NGSpice.
